Source: https://www.cv-foundation.org/openaccess/content_cvpr_2016/papers/Schonberger_Structure-From-Motion_Revisited_CVPR_2016_paper.pdf

Note:

• This paper uses incremental SfM
• Corresponding paper for COLMAP

Structure from motion

Reconstruction of 3D structure from a sequence of 2D images of that structure, taken from different viewpoints.

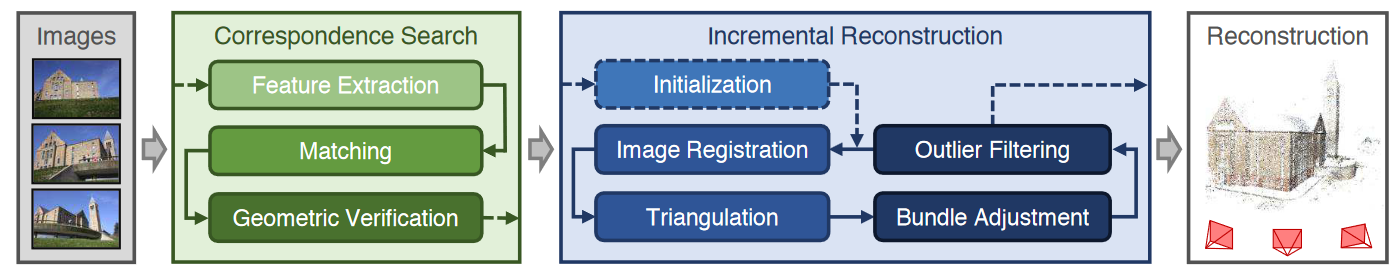

1. Search for correspondence between images –> output: scene graph (nodes: images, edges: verified pairs)
   1. Feature extraction
   2. Feature matching
      Output: set of image pairs and their associated feature correspondences
   3. Verification: do features map to the same scene point?
      Also: filter outliers e.g. using RANSAC
2. Scene graph initialises the reconstruction stage –> output: {camera pose estimates, set of scene points}

Source: https://en.wikipedia.org/wiki/Structure_from_motion

Structure from motion

Uses motion-parallax .

Geometric information to be estimated:

• 3D structure
• Camera motion

Tasks

• find correspondence between images
  • use feature detectors to detect features
  • feature matching to track the features across images
    e.g. Lucas-Kanade tracker, RANSAC to filter outliers
• reconstruct the 3D object
• reconstruct the camera motion

Feature trajectories over time are used to reconstruct their 3D positions as well as the camera motion [Dellaert, Thrun 2000].

Alternatively: feature-free methods / direct methods, where geometric information is directly estimated from the images without abstracting to features [LSD-SLAM]

Approaches to SfM

• Incremental SfM: solve for camera poses one by one [Schönberger, Frahm 2016]
• Global SfM: solve for all camera poses at once [Tomasi, Kanade 1992]
• NRSfM
