Source: google-ml-course

Neural networks

• Goal: we want the model to learn the nonlinear features itself without us having to manually define the nonlinear features
• More sophisticated version of feature crosses
• Automatic learning of the feature crosses

Linear model

Each input (feature) is assigned a weight and the weight combination of all these features result in the output.

Incorporate nonlinearity

Add another layer of features?

• not linear yet
• linear combination of linear functions is still linear
• solution: do a nonlinear transform between layers (activation function)

Activation function

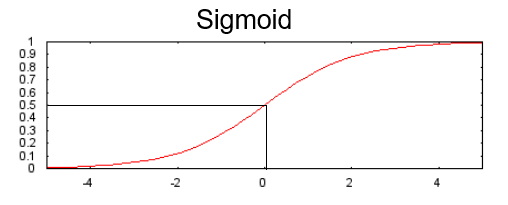

Sigmoid function

$$ F(x) = \dfrac{1}{1 + e^{-x}} $$

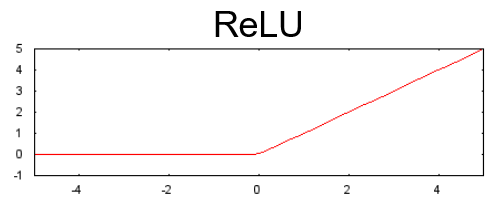

Rectified Linear Unit (ReLU)

Caps value (from the bottom) at 0.

$$ F(x) = \max (0, x)$$

• Often works better than the sigmoid function (from empirical findings)
• This is probably due to the responsiveness of the ReLU function compared to the sigmoid (flat gradient on extreme ends of the sigmoid)

Notes

(taken from class notes)

• If no (nonlinear) activation functions are used:
  • in the case of a FCN, all hidden layers are parametrised by weights and biases (input to output is mapped by an affine function $y = Wx + b$)
  • if no nonlinearity is present between each mapping, the whole network then reduces to an affine mapping between the input and the output
  • so no nonlinear activations effectively render all hidden layers useless, reduces the neural newrok to a one layer perceptron $$ x_L = Wx_0 + b$$
• Alternatively, if activation function $\phi$ available but no hidden layers: $$x_L = x_1 = \phi( W_1x_0 + b_1 )$$
  • network is not able to approximate a general nonlinear I/O mapping
  • activation function $\phi$ is often monotone increasing, and this has no effect for maximising the network output in classification

Training the neural network

• Due to the incorporated nonlinearities and layers: non-convex optimisation
• Initialisation may be important
• Perform backpropagation (variant of gradient descent for non-convex optimisation) to train the weights

Notes

• The greater the number of neurons in a single hidden layer, the greater the redundancy
  • No redundancy: neuron is ‘lost’ during a run
  • With redundancy: increased likelihood of converging to a good model
• The more layers: the more complexity because of more ‘crossings’ between intermediate features –> result in the modeling of more complex topology
• It might make sense to have more nodes in the first layer to provide more base features for crossing in the next layer
• A first hidden layer with only one neuron can never be used to train a good model, no matter how deep the layers are.
  • The output of this first hidden layer will then only vary along one dimension
  • Later layers are not able to compensate for this
• Caution: overfitting with models which are too complex and too deep
