Example: UAV attitude estimation
Goal:
- To estimate roll and pitch angles of aircraft
- These angles are needed for feedback in autonomous control of an unmanned UAV
We have:
- 3-axis accelerometer [$\text{m/s}^2$]
- 3-axis gyroscope [$\text{rad/s}$]
Note:

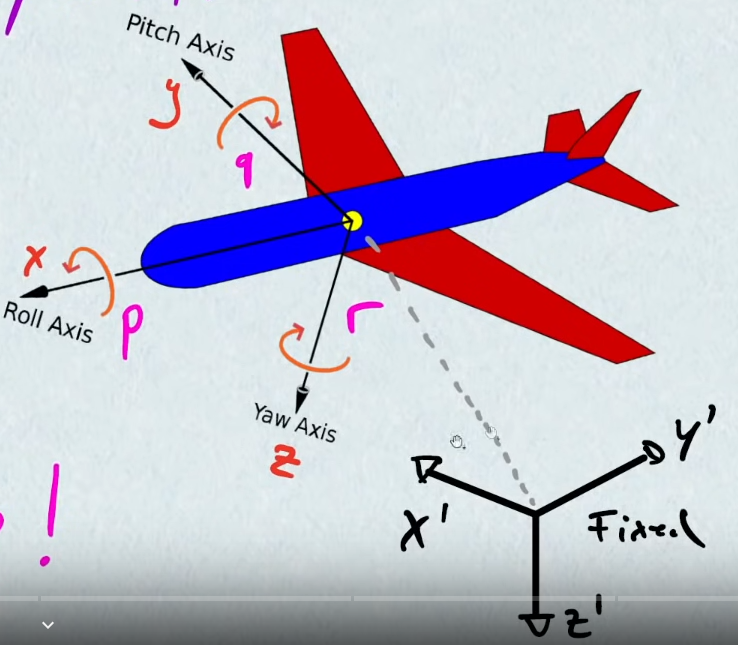

Here, angles are measured in body frame and not in fixed/inertial frame!
Measured quantities:
- acceleration
$\mathbf{a}_B = \left[\begin{array}{ccc} a_x & a_y & a_z \end{array}\right]^\text{T}$ - roll rates from gyrometer (body) $\neq$ derivative of
Euler angles
(fixed)
$\mathbf{\omega}_B = \left[\begin{array}{ccc} p & q & r \end{array}\right]^\text{T} \neq \left[\begin{array}{ccc} \dot{\phi} & \dot{\theta} & \dot{\psi} \end{array}\right]^\text{T}$
Accelerometer
$$\mathbf{a} = \left[\begin{array}{ccc} a_x & a_y & a_z \end{array}\right]^\text{T}$$
Accelerometer model
(Preliminary, doesn’t account for everything yet – the extra acceleration terms to be added would introduce a cross-correlation between the yaw $\psi$ and the other angles.) $$\begin{aligned} \left[\begin{array}{c} a_x \ a_y \ a_z \end{array}\right] &= \frac{d\mathbf{v}}{dt} + \mathbf{\omega}_B \times \mathbf{v} - \mathbf{R} \left( \begin{array}{c} 0 \ 0 \ g \end{array} \right) + \mathbf{\beta}(t) + \mathbf{\eta}(t) \end{aligned}$$
| Variables | Description |
|---|---|
| $\frac{d\mathbf{v}}{dt}$ | linear acceleration |
| $\mathbf{\omega}_B \times \mathbf{v}$ | acceleration due to translation + rotation |
| $\mathbf{g}$ | gravity vector |
| $\mathbf{\beta}$ | bias |
| $\mathbf{\eta}$ | noise (zero-mean, Gaussian) |
If the accelerometer is at rest,
and ignoring noise/bias terms, the model is simplified to
$$\begin{aligned}
\left[\begin{array}{c}
a_x \ a_y \ a_z \end{array}\right]
&= \left[ \begin{array}{c}
g \sin \theta \
-g \cos\theta \sin\phi\
-g \cos\theta \cos\phi
\end{array} \right]
\end{aligned}$$
and we can just rearrange the terms to get the roll $\phi$ and pitch $\theta$ angles.
$$
\begin{aligned}
\hat{\phi}\text{acc} &= \tan^{-1}\left( \frac{a_y}{a_z} \right)\
\hat{\theta}\text{acc} &= \sin^{-1}\left( \frac{a_x}{g} \right)
\end{aligned}
$$
Drawbacks of the above angle estimation:
- Only true for accelerometer at rest
- Noise is present in real life (typically high frequency noise –> apply low-pass filter to measurements!)
- Time-varying bias term
–> how to estimate and cancel it out?
–> how to perform initial calibration?
